USB V.92 / 56K Modem

SKU: SH-1.1-5
Availability:

2 in stock

€50.00 inc. VAT

2 in stock

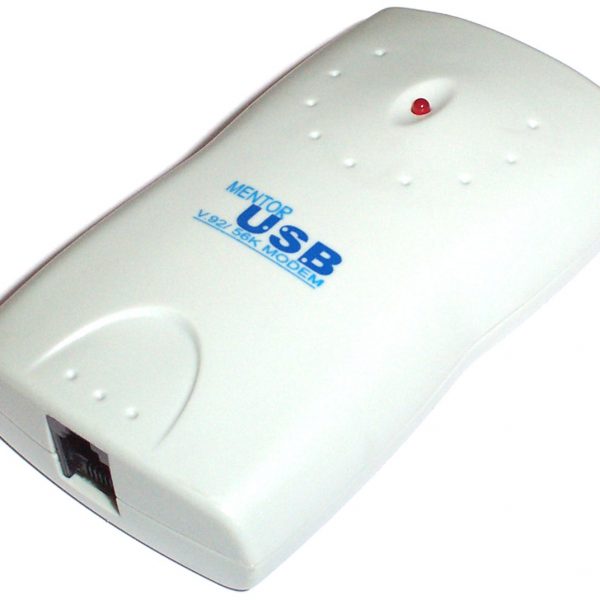

56K USB Modem

General Descriptions

USB 56K modem connects to PC through an USB cable. It uses advanced Conexant chipset solution that provides complete system design featuring Data/Fax/TAM for 56K dial-up Internet access. VD56UC offers easy installation and cost-effective connection for residential users. USB bus powered modem without messy power cord that saves desk space.

This product is made in ISO9001 approved factory. USB 56K modem complies with FCC and CE approvals.

Features and Benefits
  • USB specifications v1.1 compliant
  • Bus powered design. Needs no additional power adapter
  • Plug and play compatible for easy installation and configuration
  • Data transfer rate up to 56 Kbps download and up to 48 Kbps upload
  • Supports video conferencing
  • Friendly GUI configuration and management software
  • Supports fax function with transfer rate up to 14.4 Kbps
  • Supports telephone answering machine (TAM) function and telephony services
Specifications
Data Transfer Rates Up to 56 Kbps download and 48 Kbps upload
Data Mode

ITU-T V.92, V.90, V.34, V.32 bis, V.32, V.22 bis, V.22,
V.23, V.21, Bell 212A and Bell 103

Data Compression ITU-T V.44, V.42 bis/MNP 5
Error Correction ITU-T V.42/MNP 2-4
Fax Transfer Rates Up to 14.4 Kbps send and receive
Fax Mode ITU-T V.17, V.29, V.27 ter, V.21 CH2, Group 3, Class 1
Media Connector RJ-11 x 1, USB x 1
Interface USB Type-B connector
Power Consumption 0.1W max.
Dimensions (app.) 105mm (length) x 63mm (width) x 24mm (height)
Net Weight (app.) 75g
Operating Temperature 0°C ~ 60 °C
Humidity 5 % ~ 95 % (non-condensing)
Storage Temperature -20°C ~ 70°C
Supported OS Windows 98, 98SE, ME, 2000 and XP
Minimum System
Requirements		 Pentium compatible processor 200 MHz and above
Minimum 32 MB RAM
Minimum 30 MB available hard disk space
CD-ROM drive
One USB port
Regulations FCC part 15, part 68, CE
