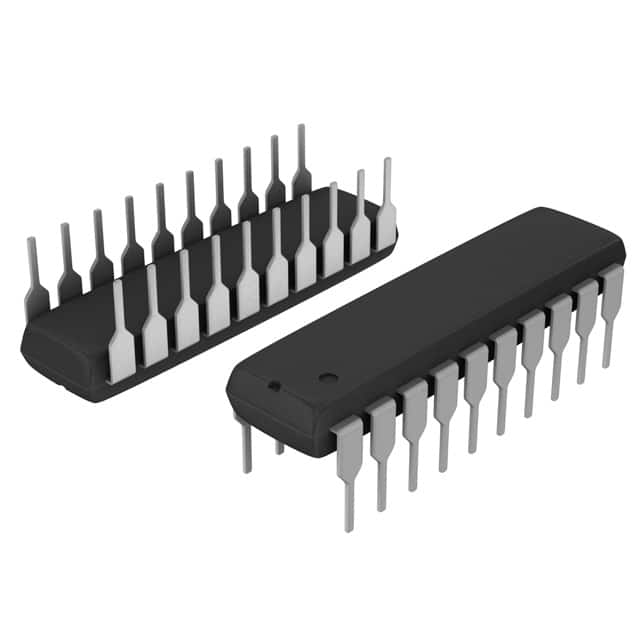

SN74HC245N Transceiver 74HC245 2 V to 6 V DIP-20

The SN74HC245N is an Octal Bus Transceiver with 3-state outputs, designed for asynchronous 2-way communication between data buses. The control-function implementation minimizes external timing requirements. The device allows data transmission from the A bus to the B bus or from the B bus to the A bus, depending on the logic level at the direction-control (DIR) input. The output-enable (OE) \ input can be used to disable the device so that the buses are effectively isolated.

  • High-current 3-state outputs drive bus lines directly or up to 15 LSTTL loads
  • Low power consumption, 80µA maximum ICC
  • 12ns Typical TPD
  • ±6mA Output drive at 5V
  • Low input current of 1µA (maximum)

Manufacturer: Philips

SKU: SH-1.6-2

403 in stock

0.25 inc. VAT

403 in stock


  • : Transceiver, Non Inverting
  • : 74HC245
  • : DIP
  • : 20Pins
  • : 2V
  • : 6V
  • : 74HC
  • : 74245
  • : -40°C
  • : 85°C
