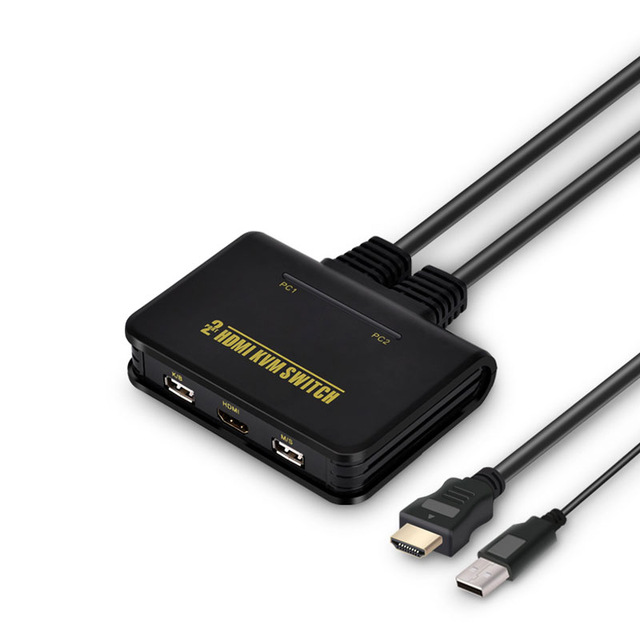

Dual-Port USB 2.0 HDMI KVM Switch

Features:

• Built-in cable KVM switch, great appearance, easy installation.
• Cable built into the KVM switch, portable and easy use.
• Supports Windows 98 / ME / 2KP4 / XP / 2003, Linux, MAC OS and so on.
• USB built-in cable KVM switch support plug and play. No need to shut down the computer when add or remove the PCs.
• Computer side: built-in cable KVM switch：USB-A Male，HDMI Female
• Console side：USB built-in cable KVM switch：2xUSB-A Male, HDMI Female
• Support HDMI resolution: 1920*1080@60HZ
• No need for external software.
• Switch mode: Hotkeys on the keyboard: USB built-in cable KVM switch：“SCROLL”，“SCROLL”，“1”“2” or “↑”“↓”
• LED indicates the current status.
• HDMI version: HDMI 1.4
• HDCP version: HDCP 1.2
• HDMI resolution: 24/50/60fs/1080P/1080i/720P/576P/576i/480P/480i
• Support video colour format: 24bit/deep color 30bit, 36bit
• Support audio format: DTS/HD/Dolby-tureHD/LPCM7.1/DTS/Dolby-AC3/DSD
• Max bandwidth: 225MHz
• Max baud rate: 6.75Gbps
• Input/Output TMDS signal: 0.5-1.5Vp-p(TTL)
• Input/Output DDC signal: 5Vp-p(TTL)
• Input cable distance: ≤15m AWG26 HDMI 1.4 standard cable
• Output cable distance: ≤25m AWG26 HDMI 1.4 standard cable
• Max working current: 1A
• Power adapter format input: AC(50/60Hz): 100V-240V; Output: 5V/1A
• Operating Temperature range: (-15 to +55°C)
• Operationg Humidity range: 5 to 90% RH.
